Bosch · Standard cabinet installation; single electric wall oven

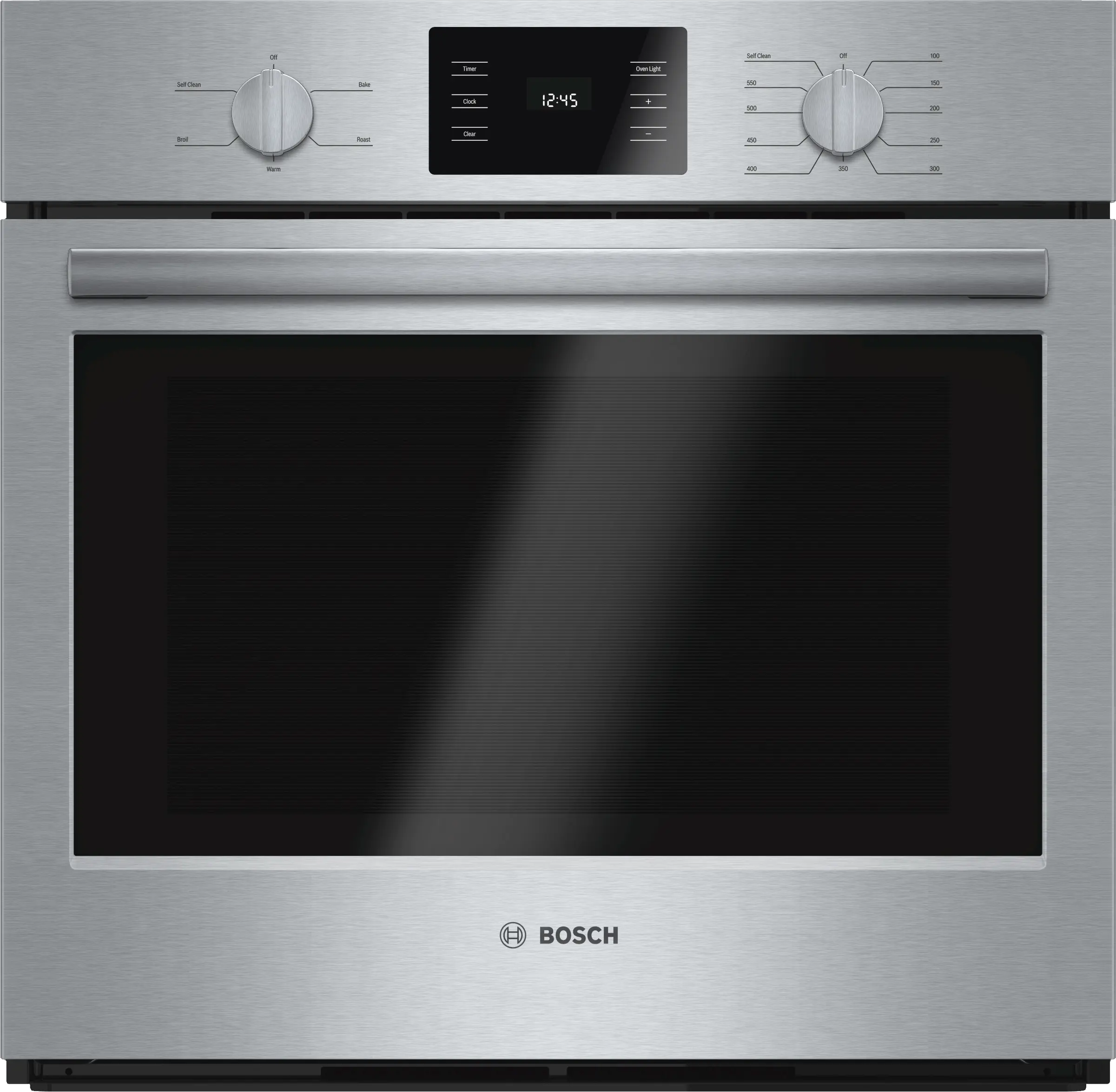

Bosch HBL5351UC dimensions
500 Series 30-inch single wall oven
Manufacturer documentation reviewed 2026-09-21; individual fact dates are retained below. This is a research record, not a hands-on review.
Manufacturer product information ↗
We may earn a commission from qualifying purchases through these affiliate links, at no extra cost to you.
Confirm the exact product, current stock, delivery and installation with the seller.
Some source details remain unresolved. Review the notes and confirm them with the manufacturer before ordering.
Opening requirements and body dimensions
Use the opening requirements for the installation shown. The appliance-body dimensions are provided separately for reference. “Not verified” means the requirement has not been established in this record.
| Measurement | Documented value |
|---|---|
| Minimum opening width | 28.5 in |
| Maximum opening width | Not verified |
| Minimum opening height | 27 in |
| Maximum opening height | 28.625 in |
| Minimum opening depth | 23.5 in |
| Maximum opening depth | Not verified |
| Appliance body width | 29.75 in |
| Appliance body height | 29 in |
| Appliance body depth | 24.5 in |
Specification-sheet overall appliance size; consult the drawing for projection and handle references. This is not an opening envelope.
Where manufacturer sources differ
These differences remain part of the research record. Confirm the exact unit and installation document before ordering.
Body · depth
- 24.5 in — September 2026 specification sheet, page 1. Read source ↗
- 23.5 in — Product-page technical overview. Read source ↗
Use the model-specific specification-sheet value for reference; product-page depth differs. Confirm the exact depth reference and shipped configuration with Bosch. This does not change the separately documented standard cutout depth.
Compare your opening with the documented dimensions
This checks only the opening measurements recorded below. Conditional cutouts, trim, ventilation, utilities, support and delivery access still need a separate review.
Installation details to review
- Standard cutout: 28.5 inches wide, 27–28.625 inches high and 23.5 inches deep. Verify cabinet support and trim coverage before cutting.
- Flush installation uses a different opening: 30 inches wide, 29.125 inches high and 24.5 inches deep. It is not evaluated by this standard-installation record.
- The specification sheet lists 240/208 V, 60 Hz and a 30 A circuit breaker with a fixed electrical connection. Have the installer confirm the supply and junction-box location.
- Stacked or side-by-side appliances need the exact approved combination and separation requirements; dimensions alone do not establish an approved pairing.
Manufacturer product page and documents were available on the review date. Retailer stock, delivery and a tracked buying link have not been verified.
Confirm the full model suffix and the revision of the installation instructions. Dimensional checks do not establish utility compatibility, structural support, safe clearances or installation approval.
The evidence behind this record
- Bosch HBL5351UC product and document hub ↗ manufacturer-product
- Bosch HBL5351UC specification and installation drawings, September 2026 ↗ manufacturer-dimension-sheet
View individual facts and their sources
| Fact | Recorded information | Source |
|---|---|---|
| Body · width | 29.75 in Specification-sheet overall appliance dimension, not cabinet opening. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Body · height | 29 in Specification-sheet overall appliance dimension, not cabinet opening. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Body · depth | 24.5 in Specification-sheet overall appliance dimension, not cabinet opening. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Opening · min Width | 28.5 in Standard installation only. Required cutout dimensions are separate from appliance dimensions; unspecified maximum tolerances remain unknown. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Opening · min Height | 27 in Standard installation only. Required cutout dimensions are separate from appliance dimensions; unspecified maximum tolerances remain unknown. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Opening · max Height | 28.625 in Standard installation only. Required cutout dimensions are separate from appliance dimensions; unspecified maximum tolerances remain unknown. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Opening · min Depth | 23.5 in Standard installation only. Required cutout dimensions are separate from appliance dimensions; unspecified maximum tolerances remain unknown. Observed 2026-09-21 | Manufacturer evidence ↗ |
