Check installation accessories for a new machine or replacement rack parts for an existing one. This pilot contains 15 parts with manufacturer evidence for specific models. We have not measured failure rates or physically tested these parts.
Check the damaged component before buying. A broken wheel, carrier or basket may be a replaceable component; a washing, leaking or draining symptom does not by itself identify a failed part. Follow the manufacturer’s repair instructions or use a qualified technician for electrical, plumbing or internal work.
Links marked affiliate may earn us a commission. As an Amazon Associate I earn from qualifying purchases. Payment does not change model applicability or the order of parts.
SMZPCJB1UCPhoto: Bosch ↗Product photo; confirm the contents of the selected retailer package.
Installation accessory

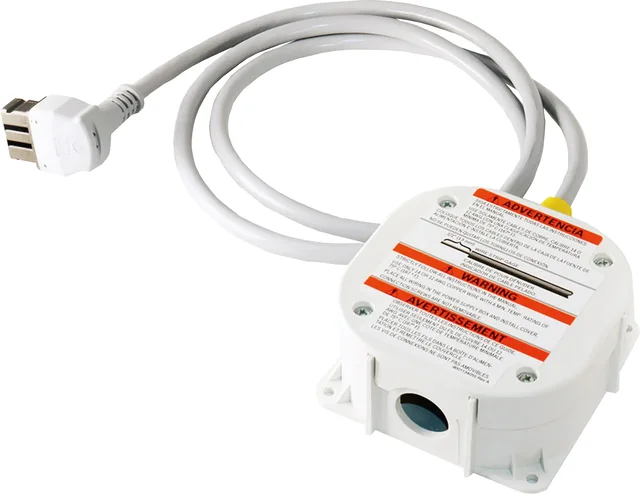

Bosch junction-box accessory SMZPCJB1UC
For a permanent wiring connection when the applicable installation instructions call for this kit. It is not an extra purchase for every plug-in installation.
Have the installer confirm the delivered model, electrical connection and kit instructions. A three-prong cord is already included in the archived SGE53X55UC package.

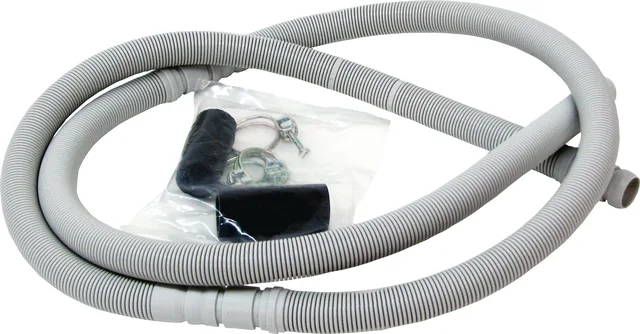

The current linked manual limits the total drain-hose length to 150 inches. Check routing and the delivered machine before ordering; longer is not automatically acceptable.
Check current stock, quantity per package, full model applicability and return conditions at the store.
WX09X70910Photo: GE Appliances ↗Product photo; confirm the contents of the selected retailer package.
Installation accessory

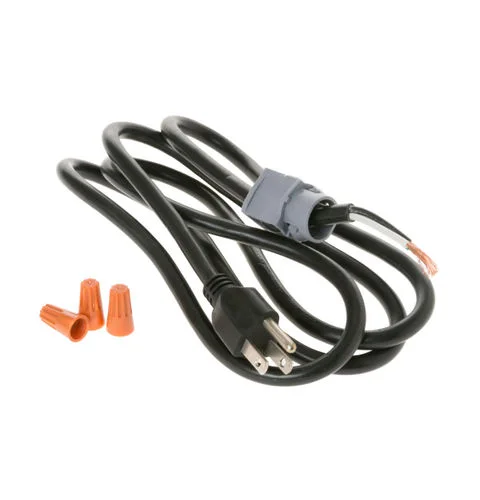

GE dishwasher power-cord kit WX09X70910
A named cord kit for a plug-in installation of the models listed below. A hardwired installation is a different arrangement.
Documented models: GDT226SSLSS, PDT145SGLWW.
The linked guide describes this cord as 5 feet 4 inches. Check what your retailer’s installation service includes before buying it separately; electrical work needs the applicable installation instructions.
Check current stock, quantity per package, full model applicability and return conditions at the store.
WD12X26146Photo: GE Appliances ↗Product photo; confirm the contents of the selected retailer package.
Repair part
GE lower-rack roller WD12X26146
A replacement wheel to investigate when the lower rack has a visibly damaged or missing roller. Trouble moving the rack alone does not diagnose a failed wheel.
This is the roller, not the entire carrier assembly. Use only the exact revisions listed on this card; check the full model on the appliance label and any later part replacement with GE.
GE-listed replacements for: WD12X10435. Recheck supersessions before ordering.
GE’s diagram substitutes this kit for several older carriers and covers. Verify the kit contents, side identification and installation instructions before replacing individual pieces.
Check current stock, quantity per package, full model applicability and return conditions at the store.
WD28X22867Photo: GE Appliances ↗Product photo; confirm the contents of the selected retailer package.
Repair part

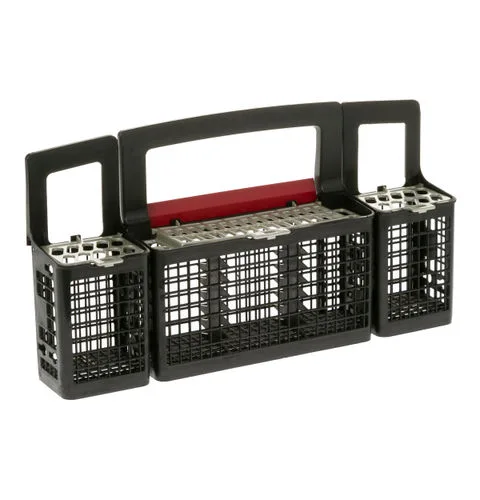

GE silverware-basket assembly WD28X22867
A replacement basket to investigate if yours has a broken bottom or dividers. Compare the complete assembly with the part you need.
Documented models: GDT580SSF0SS, GDT580SSF8SS.
The diagram replaces several old basket sections with this assembly. Do not assume the new listing supplies only the individual section shown in the old drawing.
Check current stock, quantity per package, full model applicability and return conditions at the store.
WD28X22621Photo: GE Appliances ↗Product photo; confirm the contents of the selected retailer package.
Repair part
GE GDF520PGJ2WW silverware basket WD28X22621
A manufacturer-listed basket replacement for a damaged basket or lid on the exact model below.
Documented models: GDF520PGJ2WW.
This model uses WD28X22621, not the WD28X22867 basket listed for the GDT580 revisions. GE also replaces the old individual lids with this basket; check complete contents before buying.
GE-listed replacements for: WD28X10345, WD28X22510, WD28X22511. Recheck supersessions before ordering.
Poor washing alone does not diagnose a damaged spray arm. Check the diagram, current replacement and included mounting components with GE before ordering.
GE-listed replacements for: WD22X10089. Recheck supersessions before ordering.
Check current stock, quantity per package, full model applicability and return conditions at the store.
WD12X10426Photo: GE Appliances ↗Product photo; confirm the contents of the selected retailer package.
Repair part
GE upper-rack rail end cap WD12X10426
Replace the documented retaining end cap if it is visibly broken or missing.
Documented models: GDF520PGJ2WW.
This is an end cap, not the rack roller or complete rail. Verify the number of caps supplied; no application to the GDT580 revisions is established here.
Check current stock, quantity per package, full model applicability and return conditions at the store.
GPF3RACKPhoto: GE Appliances ↗Product photo; confirm the contents of the selected retailer package.
Optional upgrade
GE optional third-rack accessory kit GPF3RACK
Adds an optional third rack to the two owner-center models documented here.
Documented models: GDT605PSMSS, GDT635HSMSS.
These are GE owner-center model numbers, not a match for every service revision or similarly named dishwasher. Confirm the complete label, mounting arrangement and current kit instructions with GE. No compatibility is inferred from tub size, brand or year alone.
GE’s GDT580SSF0SS lower-rack diagram points the older WD12X10435 wheel to WD12X26146. It also sends multiple old carrier and cover numbers to WD01X35298. That is why a wheel, a carrier kit and a complete rack should not be treated as the same purchase. Follow the manufacturer’s current replacement chain and check what the package contains.
Shared wheels do not mean shared baskets

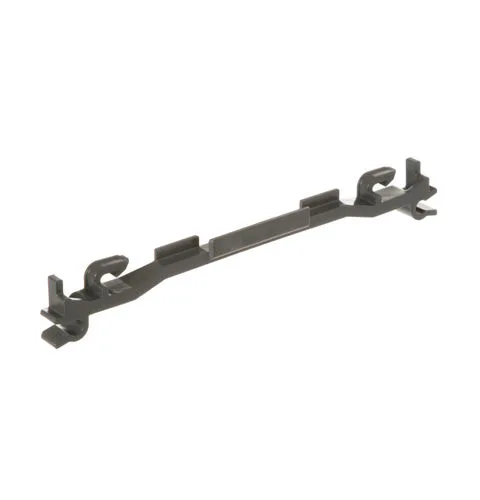

GE’s exact-revision diagrams for GDT580SSF0SS, GDT580SSF8SS and GDF520PGJ2WW all lead to roller WD12X26146 and carrier kit WD01X35298. But GDF520PGJ2WW uses basket WD28X22621, while the two GDT580 revisions lead to WD28X22867. GDT580SSF8SS also lists clip WD12X20171 at diagram 695. Open the manufacturer evidence on each card to compare the specific parts and replacement chains.
Upper-rack brackets are not interchangeable by appearance

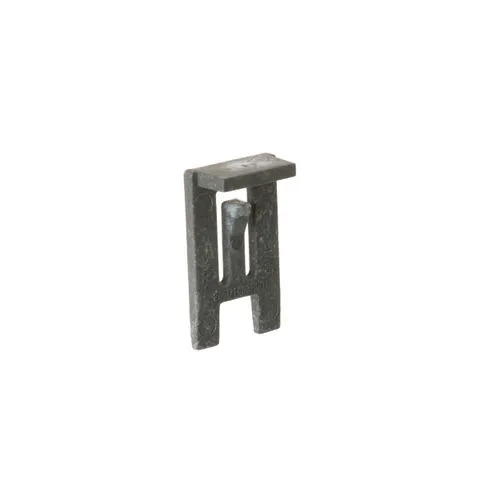

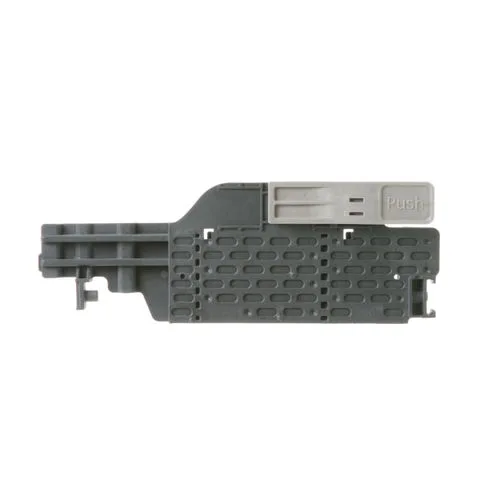

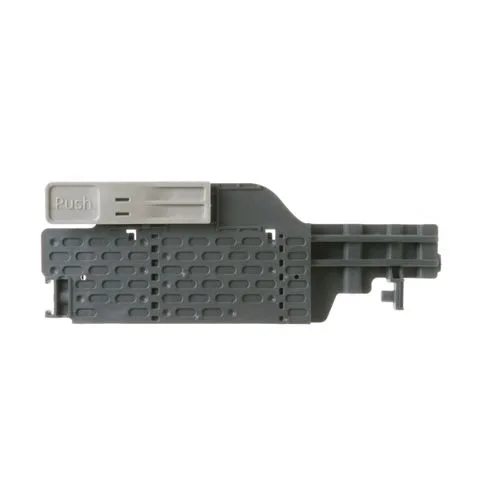

The two researched GDT580 revisions list adjustable brackets WD12X20108 and WD12X20109 at different diagram positions. GDF520PGJ2WW uses a different support arrangement, including end cap WD12X10426 and locking clip WD12X10430. All three diagrams point old middle spray arm WD22X10089 to WD22X33498. Keep the complete model revision with every replacement chain.
What this pilot does not establish
Availability of a repair part does not prove that it fails frequently. We do not have service-call rates or sales volume for these items. Where an Amazon link is shown, we checked its listed brand and part number against the named part; model applicability comes from the manufacturer documents, not retailer claims. We do not extend a verified part to a similar model, a different revision or a generic “universal” listing.
