Bosch · Standard cabinet installation; built-in microwave; not a countertop or over-the-range installation

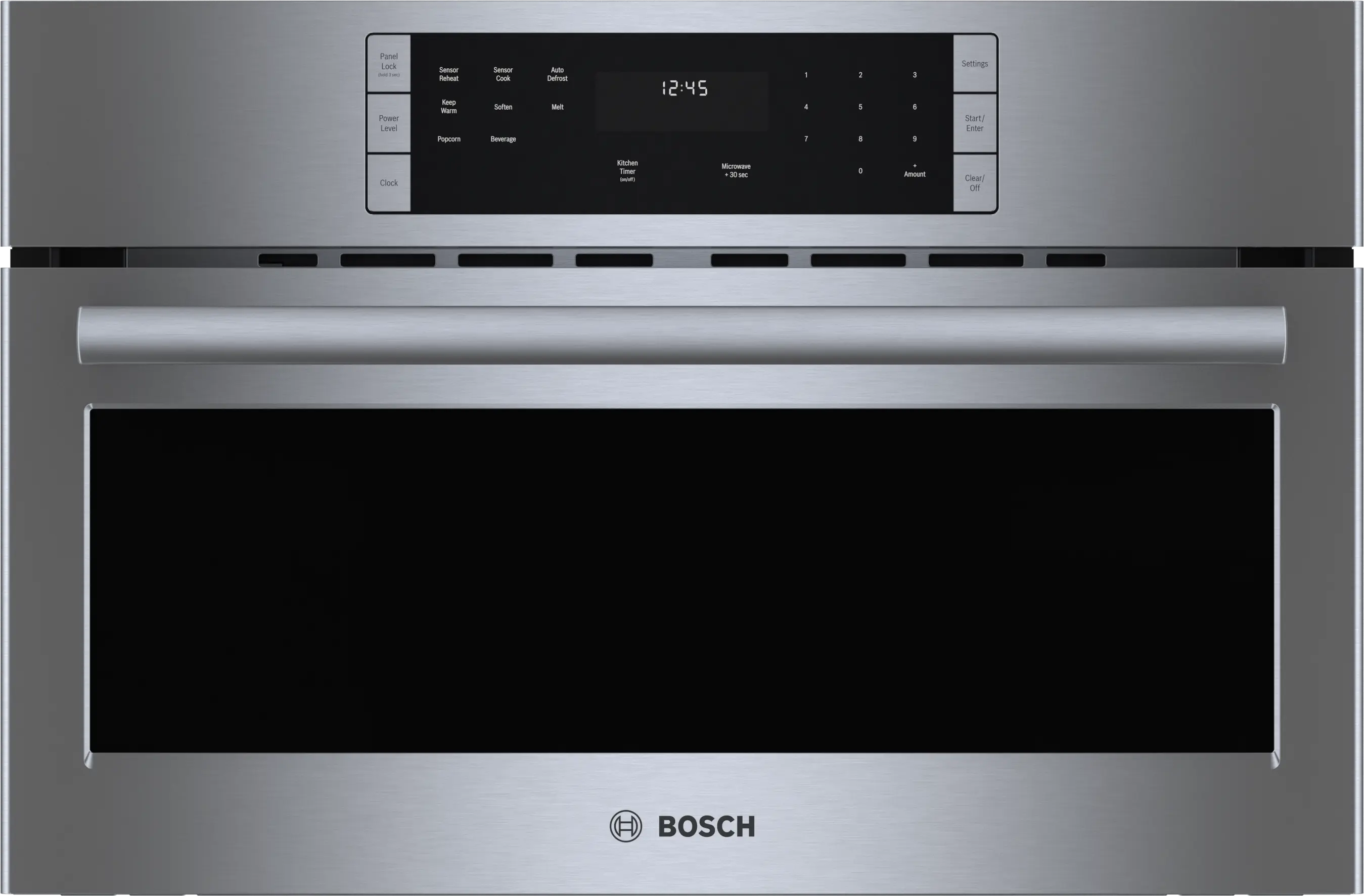

Bosch HMB50152UC dimensions
500 Series 30-inch built-in microwave
Manufacturer documentation reviewed 2026-09-21; individual fact dates are retained below. This is a research record, not a hands-on review.
Manufacturer product information ↗
We may earn a commission from qualifying purchases through these affiliate links, at no extra cost to you.
Confirm the exact product, current stock, delivery and installation with the seller.
The linked manufacturer documents have been reviewed for the configuration shown.
Opening requirements and body dimensions
Use the opening requirements for the installation shown. The appliance-body dimensions are provided separately for reference. “Not verified” means the requirement has not been established in this record.
| Measurement | Documented value |
|---|---|
| Minimum opening width | 28.5 in |
| Maximum opening width | Not verified |
| Minimum opening height | 19.25 in |
| Maximum opening height | Not verified |
| Minimum opening depth | 19.25 in |
| Maximum opening depth | Not verified |
| Appliance body width | 29.75 in |
| Appliance body height | 19.625 in |
| Appliance body depth | 19.625 in |
Specification-sheet overall appliance size; consult the drawing for projection and handle references. This is not an opening envelope.
Compare your opening with the documented dimensions
This checks only the opening measurements recorded below. Conditional cutouts, trim, ventilation, utilities, support and delivery access still need a separate review.
Installation details to review
- Standard built-in cutout: 28.5 inches wide, 19.25 inches high and 19.25 inches deep. Maximum opening tolerances are not established in this record.
- Flush installation requires a separate 30-inch-wide, 20.25-inch-high and 20.75-inch-deep configuration. Do not reuse the standard opening comparison for flush installation.
- The drawing places the receptacle above or below the unit within cable reach. Verify the mounting platform, front projection, door clearance and ventilation with the installation manual.
- The specification sheet lists 120 V, 60 Hz, a 15 A circuit breaker and a grounded NEMA 5-15 plug. Installer review is still required.
- An oven below the microwave needs an explicitly approved combination and separation; no compatibility with an arbitrary oven is implied.
Manufacturer product page and documents were available on the review date. Retailer stock, delivery and a tracked buying link have not been verified.
Confirm the full model suffix and the revision of the installation instructions. Dimensional checks do not establish utility compatibility, structural support, safe clearances or installation approval.
The evidence behind this record
- Bosch HMB50152UC product and document hub ↗ manufacturer-product
- Bosch HMB50152UC specification and installation drawings, September 2026 ↗ manufacturer-dimension-sheet
View individual facts and their sources
| Fact | Recorded information | Source |
|---|---|---|
| Body · width | 29.75 in Specification-sheet overall appliance dimension, not cabinet opening. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Body · height | 19.625 in Specification-sheet overall appliance dimension, not cabinet opening. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Body · depth | 19.625 in Specification-sheet overall appliance dimension, not cabinet opening. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Opening · min Width | 28.5 in Standard installation only. Required cutout dimensions are separate from appliance dimensions; unspecified maximum tolerances remain unknown. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Opening · min Height | 19.25 in Standard installation only. Required cutout dimensions are separate from appliance dimensions; unspecified maximum tolerances remain unknown. Observed 2026-09-21 | Manufacturer evidence ↗ |
| Opening · min Depth | 19.25 in Standard installation only. Required cutout dimensions are separate from appliance dimensions; unspecified maximum tolerances remain unknown. Observed 2026-09-21 | Manufacturer evidence ↗ |
