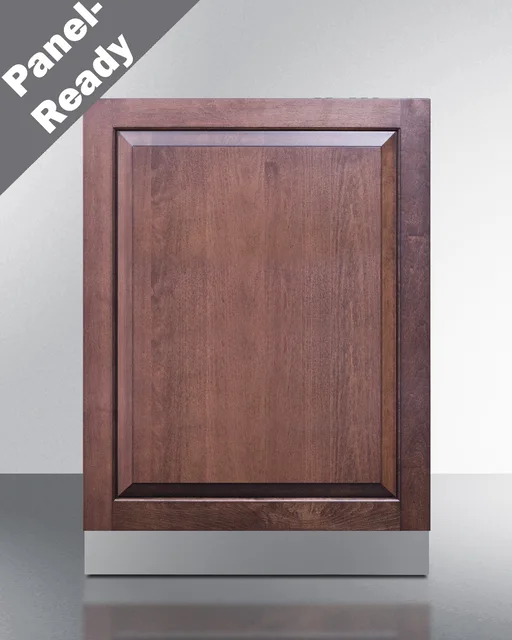

Summit DW245NTADA cabinet opening requirements

Questions people ask about the DW245NTADA

The answers come only from the manufacturer documents linked on this page and the lookup's three outcomes.

What cabinet opening does the Summit DW245NTADA need?

The reviewed manufacturer document lists a minimum cabinet opening of 32 7/16 in high, 23 5/8 in wide and 22 1/2 in deep for the Summit DW245NTADA, with a maximum opening height of 34 7/16 in. Each figure links to its source in the table on this page. This record is held for installer review, so the lookup never returns it as an automatic candidate.

Is the DW245NTADA a standard 24-inch dishwasher?

Summit places the DW245NTADA in the 24-inch category. That label describes the cabinet class, not the cutout: the reviewed minimum opening width is 23 5/8 in, and the appliance body is 23 1/2 in wide. Use the opening requirement, never the label, when you compare it with your cabinet.

Will the DW245NTADA fit my opening?

Only your measurements can answer that. Enter the opening's height, width and depth in the lookup; the DW245NTADA comes back as a dimensional candidate, an installer-review item or outside the published requirements, and because this record is held for installer review it never appears as an automatic candidate. None of the three outcomes is a fit guarantee: mounting, utilities, floor level, trim, panel weight and door swing stay with the installer.

How tall is the DW245NTADA, and is that the opening height?

The manufacturer lists the DW245NTADA appliance body at 32 1/4 in high. The body height is not the opening requirement: the minimum opening height on record is 32 7/16 in and the maximum is 34 7/16 in. Measure from the finished floor to the counter underside at several points and use the smallest reading.

Why is the DW245NTADA held for installer review?

It carries a blocking review gate: Custom panel dimensions, weight and hinge clearance need review. The installation manual names DW242WADA, DW243BADA and DW245NTADA on its cover. Page 7 illustrates a 32 7/16–34 7/16-inch cavity, 23 5/8-inch width and 22 1/2-inch depth. The separate 32 9/32–34 9/32-inch height label belongs to the appliance body. This screen uses the cavity arrows and published inch labels; metric labels are rounded differently. Page 9 describes a taller support configuration, but its text gives 33 7/8–35 7/8 inches while the adjacent illustration gives 34 9/32–36 7/32 inches. The screen stays within the page 7 cavity range; larger openings need manufacturer or installer confirmation. Maximum opening width and front/corner clearances remain unverified. Confirm mounting, adjoining-cabinet connections and the actual delivered model before altering cabinetry. The custom door requires its own check: page 15 shows a 3–8 kg (6.6–17.6 lb) door-weight range and balance adjustment; pages 14–16 require the supplied mounting template and a check for door contact with the cabinet toe kick. Panel compatibility is not checked by this lookup. The gate stays visible on this page until the evidence resolves.
