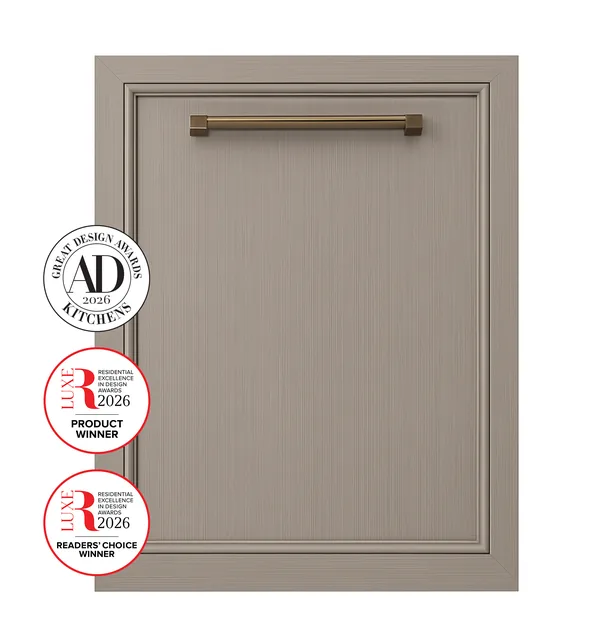

Monogram ZDT900SIYII cabinet opening requirements

Questions people ask about the ZDT900SIYII

The answers come only from the manufacturer documents linked on this page and the lookup's three outcomes.

What cabinet opening does the Monogram ZDT900SIYII need?

The reviewed manufacturer document lists a minimum cabinet opening of 34 1/2 in high, 24 in wide and 24 in deep for the Monogram ZDT900SIYII, with a maximum opening height of 35 in. Each figure links to its source in the table on this page. This record is held for installer review, so the lookup never returns it as an automatic candidate.

Is the ZDT900SIYII a standard 24-inch dishwasher?

Monogram places the ZDT900SIYII in the 24-inch category. That label describes the cabinet class, not the cutout: the reviewed minimum opening width is 24 in, and the appliance body is 23 3/4 in wide. Use the opening requirement, never the label, when you compare it with your cabinet.

Will the ZDT900SIYII fit my opening?

Only your measurements can answer that. Enter the opening's height, width and depth in the lookup; the ZDT900SIYII comes back as a dimensional candidate, an installer-review item or outside the published requirements, and because this record is held for installer review it never appears as an automatic candidate. None of the three outcomes is a fit guarantee: mounting, utilities, floor level, trim, panel weight and door swing stay with the installer.

How tall is the ZDT900SIYII, and is that the opening height?

The manufacturer lists the ZDT900SIYII appliance body at 33 3/4 in high. The body height is not the opening requirement: the minimum opening height on record is 34 1/2 in and the maximum is 35 in. Measure from the finished floor to the counter underside at several points and use the smallest reading.

Why is the ZDT900SIYII held for installer review?

It carries a blocking review gate: Candidate requires installer review of site conditions, utilities, panel or drawer clearance; do not enable automatic fit from this research batch. Custom panel dimensions, weight and hinge clearance need review. Depth uses the page 2 specifications table’s stricter 24-inch minimum cabinet depth; the page 1 cutout diagram separately shows a 23 7/8-inch minimum cutout depth. The smaller figure remains installer review only. Standard cutout height is 34 1/2 to 35 inches. The flush-installation views on the same quick specs show 33 1/2 to 34 3/4 inches from counter underside to floor and a 23 7/8-inch minimum cutout width. These are two installation styles, not agreeing measurements; the flush envelope remains installer review only. Unit height is adjustable from 33 3/4 to 34 5/8 inches; the recorded body height is the minimum. Adjustable body height is not asserted as a maximum opening height; the recorded maximum is the explicit 35-inch cutout maximum. Door clearance is 25 1/2 inches with the door open per the quick specs; that projection is not asserted as a complete minimum front or aisle clearance. The manufacturer quick-spec PDF’s internal metadata title reads “Untitled-2 copy”; retailer-hosted copies of the same GE 712025 document carry the metadata title ZDWR240NBS_QS. The document body names ZDT900SIYII and values were read from the document body only. The quick specs give a recommended 3/4-inch custom panel thickness and a 20-pound maximum panel weight with handle; hinge clearance is not published there. Panel verification is a separate review. The gate stays visible on this page until the evidence resolves.

Does the ZDT900SIYII have a smaller published cutout?

Yes. The published drawing also shows a depth from 23 7/8 in. Page 1 cutout diagram minimum cutout depth; the page 2 specifications table’s 24-inch minimum cabinet depth is retained as the conservative reviewed requirement. The lookup screens on the stricter published value; the smaller configuration stays an installer-review result, never an automatic match.
