Bosch SGV43C53UC cutout dimensions and custom panel limits

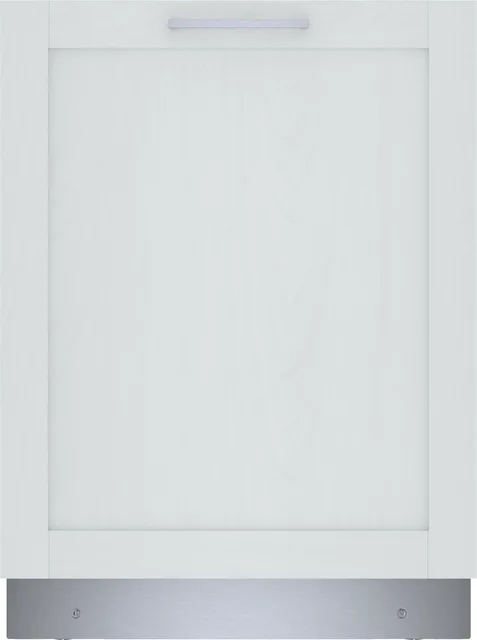

The Bosch SGV43C53UC is panel-ready. Our conservative opening screen uses 32 1/8 in high, 24 in wide and 24 in deep, but this model stays in Needs review because the custom door and cabinet design also determine installation.
| Measurement | Published requirement used by the lookup |
|---|---|
| Minimum height | 32 1/8 in |
| Maximum height | Not verified |
| Minimum width | 24 in |
| Maximum width | 24 1/4 in |
| Minimum depth | 24 in |
Why do the Bosch documents show different cutout sizes?
The model-specific specification drawing, page 2 shows a 24–24¼-inch opening width and a 24-inch depth. Its footnote allows 23⅝ inches without decor strips. The linked installation guide, page 10 describes smaller minimum dimensions: 32 1/16 inches high, 23⅝ inches wide and 21⅝ inches deep.
These are different documented configurations. We retain the smaller values as an alternative that needs installer review; we do not turn them into an unconditional fit. For an opening only 23⅝ inches wide, the installer needs to resolve the decor strips, mounting method, panel and projection against the applicable instructions.
What size custom panel does SGV43C53UC take?
The panel drawing and footnotes specify a height of 25¾–28¼ inches measured from the countertop underside, width of 23⅛–23⅜ inches, thickness of ⅝–⅞ inch and weight of 6–18 lb. Bosch recommends ¾-inch thickness. A 24-inch-wide panel is an option only when the cabinet design allows it.
Use the supplied template and confirm the door clears the toe kick. These measurements are not a cabinet-door cutting template, and our three-dimensional opening lookup does not check panel compatibility.
Does the 34 7/16-inch figure mean maximum opening height?
No. On the spec drawing, that upper limit labels the adjustable appliance body. We have not verified a maximum cavity height, so that field stays unknown. The installation guide also shows a 6-inch corner clearance; it is not a complete measurement of the space needed in front of the door.
Before choosing this model
Give your installer the opening measurements, proposed panel dimensions and weight, toe-kick layout and both Bosch drawings. A low counter alone does not make this panel-ready model a confirmed replacement.
This is a document-based installation review, not a physical installation test or a fit guarantee. Unknowns and source conflicts remain part of the decision.
